Elite Manual Powder Paint Device

Elite Manual Powder Paint Device

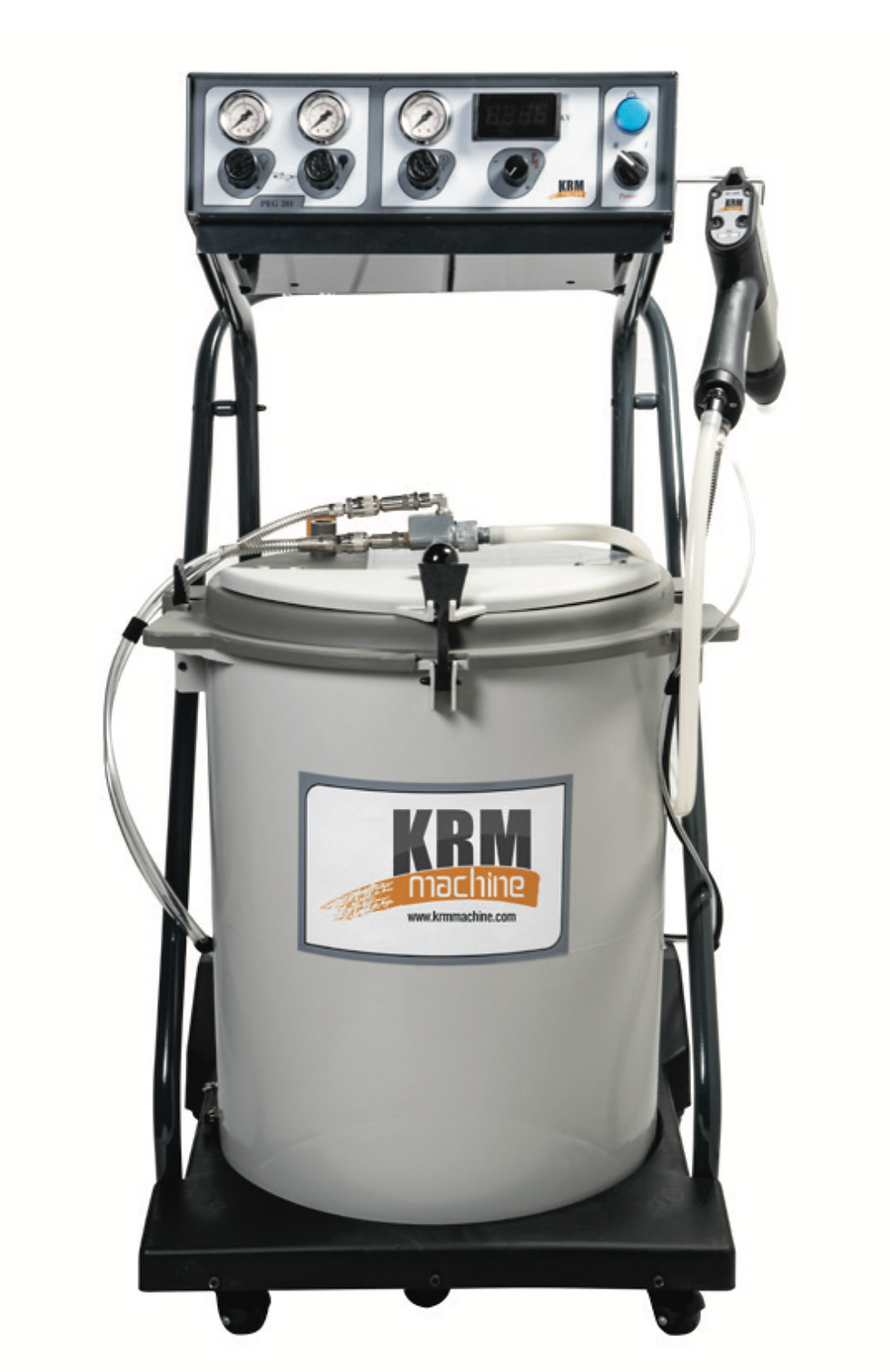

Elite Manual Powder Paint Device Set
Standing out with its compact design and user-friendly control, Elite Manual Powder Coating Device offers ideal solutions for small and medium-sized painting operations. It provides equal, smooth and durable coating on surfaces; high efficiency is targeted with low paint consumption. With its easy-to-carry structure and maintenance-free technology, it brings together professional results with practical use.
Working Principles
-
Our powder and enamel paint devices, produced with special design and high quality assurance, offer the best solution to all kinds of needs of their applicators.
-
The electro-pneumatic control box, which contains the electrical and pneumatic equipment required for the efficient operation of the system, offers its users a comfortable and fault-free operating system thanks to its special panel design and easy-to-use features.

Technical Specifications
• Control Panel: ELITE PEG 2012 Electro Pneumatic Control Panel • Input Voltage: 110 - 250 V AC
• Input Frequency: 50 / 60 Hz
• Power Consumption: 25 W
• Output Voltage: 21 V DC
• Output Voltage: 18 KHz
• Valve Control Voltage: 24 V DC
• Corono Flow Limit: 0 – 120 μ A
• Tribo Flow Lımıt: 0 – 5 μ A
• Electric Protection Class: IP 54
• Operation Temperature: 35°C max.
• Paint Flow: 0- 27 kg/hour
• European Standard: EN 500-50
• Input Air Pressure: 6 - 8 Bar (Max.)
• Air Input Slot Diameter: 8 mm (Inside Dia.)
• Air Consumption: 116 lt/min (7 m3/hour)
• Air Quality: Oil 0,1 ppm (max.), Humidity 1,3 gr/m3 (max.)
